GENERAL RESIN BASE RIBBON R20

Email: info@kiho.com.hk
Support hotline：00852-6123 2698 (WhatsApp)
Contact person：Lucy Wong
Address：7E, Tower 9, Central Park Towers II, 2 Tin Yan Road, Tin Shui Wai, N.T., Hong Kong

Details

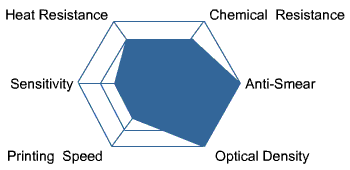

Performance of ribbon

Nature	Resin
Total Thickness	6.7±0.5μm
Penetration Density	At least 1.0(Macbeth Densitometer)
Print Speed	Max.8inch/sec
Print Energy	At least 16mj/sq.mm
Print Density	At least 1.8(Macbeth Densitometer)
Grade	ANSI ABOVE3.5/A(Upright Code)
Recommended Media Substrates	PET/Synthetic Paper
Scratch Resistance	Image density:Above90%(Uncoated paper)*
Light Resistance	Image density:Above80%(Uncoated paper)**
Chemical Resistance	Image density:Above70%(Uncoated paper)***
Using Environment	5~35℃/20~80%RH
Storage Environment	0~40℃/20~80%RH

★The form above is just for reference.

* Attrition Testing Machine 1.96×104pa Times:about 3000(Kraft paper)

** Ultraviolet Radiation Machine:720hrs of exposure (equivalent of 1 year's sunshine)

*** Attrition Testing Machine 1.96×104pa Times:20[use carious kinds of solvets(gasoline,light oil,lamp oil);cotton fabric infiltrated by acid (PH3) and alkali (PH12)]
